Underground - Copper Tube Size (CTS)

Application

Unlike above-grade gas piping installations that require metallic piping, underground systems need to perform in harsh and corrosive environments. Metallic pipe installed underground requires additional and costly materials to protect the pipe. Polyethylene gas piping systems are specifically engineered and certified for the underground environment. To provide a true underground gas piping solution, Gastite® has partnered with Continental Industries, Inc. to bring you Con-Stab I.D. Seal®‚ fittings, anode-less risers and polyethylene tubing (PE). These components assemble in minutes to form a complete underground gas piping system, which offers the flexibility and simple fitting assembly you have come to expect from Gastite®.

Features & Benefits

  • Cost effective joining method
  • Simple assembly.
  • No additional assembly equipment required for installation – just chamfer and push
  • Expanded product line with various configurations and material options
  • Uni-body design eliminating all external parts
  • Designed, tested and certified for direct burial
  • Eliminates corrosive threats associated with metallic piping
  • Lowest installed cost compared to other underground gas piping materials
  • Continuous lengths of flexible piping

Code/Specifications

• NFPA-58 and NFPA-54
• ASTM D-2513, Category 1
• ASME D-B31.8-1995
• CAN/CSA-B137.4
• Listed with CSA
• Listed with IAPMO/UPC
• US DOT Part 192.283
• ISO 4437

Underground - Copper Tube Size (CTS)

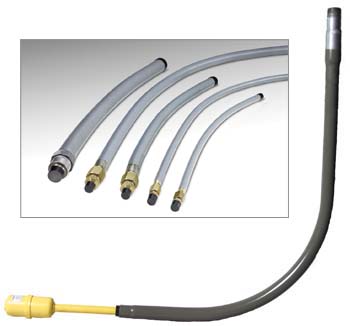

Copper Tube Size (CTS) Risers

Copper Tube Size (CTS) Risers
Part No. Description Pkg. Qty. Lb./Box
F-RISER-8-36    Flex Riser - 1/2" CTS x 36" x 3/4" NPT 1 Ea. 1.8
F-RISER-8-72    Flex Riser - 1/2" CTS x 72" x 3/4" NPT 1 Ea. 3.1
RISER-8-18    1/2" CTS x 18" Vertical x 3/4" NPT Riser w/Con-Stab Cplg. 1 Ea. 3.5
RISER-8-30    1/2" CTS x 30" Vertical x 3/4" NPT Riser w/Con-Stab Cplg. 1 Ea. 5.0
RISER-16-30    1" CTS x 30" Vertical x 3/4 NPT Riser w/Con-Stab Cplg. 1 Ea. 8.0

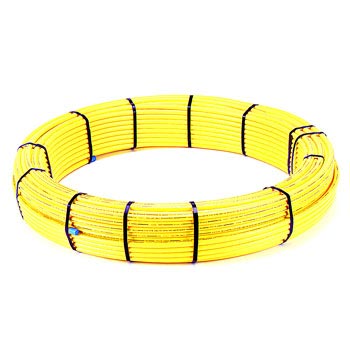

Copper Tube Size (CTS) Tubing

Copper Tube Size (CTS) Tubing
Part No. Description Pkg. Qty. Lb./Box
PE-8-125    1/2" CTS (SDR-7) - PE Tubing (24" ID x 31" OD) 125 ft./coil 8.8
PE-8-250    1/2" CTS (SRD-7) - PE Tubing (26" ID x 36" OD) 250 ft./coil 17.5
PE-8-500    1/2" CTS (SDR-7) - PE Tubing (30" ID x 38" OD) 500 ft./coil 35.0
PE-16-125    1" CTS (SDR-11.5) - PE Tubing (24" ID x 35" OD) 125 ft./coil 17.5
PE-16-250    1" CTS (SDR-11.5) - PE Tubing (25" ID x 45" OD) 250 ft./coil 35.0
PE-16-500    1" CTS (SDR-11.5) - PE Tubing (30" ID x 44" OD) 500 ft./coil 70.0

Copper Pipe Size (CPS) Coupling

Copper Pipe Size (CPS) Coupling
Part No. Description Pkg. Qty. Lb./Box
CUCPL-1/4    1/2" CTS x 1/4" Copper to Coupling 1 Ea. 0.3
CUCPL-1/2    1/2" CTS x 1/2" Copper to Coupling 1 Ea. 0.3
CUCPL-3/8    1/2" CTS x 3/8" Copper to Coupling 1 Ea. 0.3
PE90CPL-8    1/2" CTS 90 Degree Coupling 1 Ea. 0.4
PECPL-8    1/2" CTS Coupling 1 Ea. 0.2
PECPL-8-16    1/2" CTS x 1" CTS Reducer Coupling 1 Ea. 0.5
PECPL-16    1" CTS Coupling 1 Ea. 0.5
PERCPL-8    1/2" CTS Repair Coupling 1 Ea. 0.4

Copper Tube Size (CTS) Tee Fitting

Copper Tube Size (CTS) Tee Fitting
Part No. Description Pkg. Qty. Lb./Box
PET-8    1/2" CTS Tee Fitting 1 Ea. 0.5
PET-16    1" CTS Tee Fitting 1 Ea. 1.1

Copper Pipe Size (CPS) Fitting

Copper Pipe Size (CPS) Fitting
Part No. Description Pkg. Qty. Lb./Box
TRANS-8    1/2" CTS x 1/2" NPT Transition Fitting 1 Ea. 0.9
TRANS-16    1" CTS x 1" NPT Transition Fitting 1 Ea. 1.4
