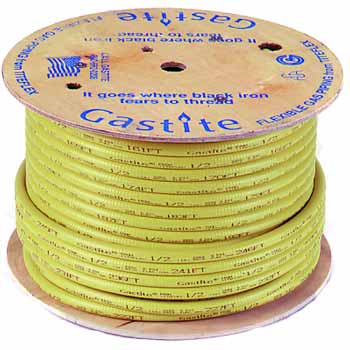

Gastite® System Corrugated Stainless Steel Tubing (CSST)
Application
Gastite® Corrugated Stainless Steel Tubing (CSST) supplies natural gas or LP gas to appliances. Gastite is a reliable, cost-effective system that can be installed in all modes of construction. Flexibility means quick and easy installations: Gastite® installs 30-70% faster than traditional piping methods.
- CSST flexible gas piping supplies natural gas or liquefied petroleum gas to appliances.
Materials / Specification
- Tubing: ASTM A240 Type 304 Stainless Steel.
- Jacket: UV resistant Polyethylene complying with requirements of ASTM E84 25/50 Index for Flame and Smoke.
Features & Benefits
- Flexibility and durability allows for simple routing through complex building structures and designs.
- Pre-marked by the foot for easy measuring and installation.
- Minimum tubing wall thickness of .010 on all sizes is more robust than other brands of CSST.
- Annealed 304 stainless steel makes tubing more flexible than brands not heat-treated.
Code/Specifications
• CSA: ANSI LC 1 "Fuel Gas Piping Systems Using Corrugated Stainless Steel Tubing"
• IAPMO: International Association of Plumbing & Mechanical Officials - File No. C-3250
• ICC: International Code Council - Evaluation Report No. PMG 1019
Engineering Specs
Gastite® System Corrugated Stainless Steel Tubing (CSST)
1/2" Corrugated Stainless Steel Tubing
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| S93-8A4-25 | 1/2" Corrugated Stainless Steel Tubing | 25 Ft/Coil (5/Box) | 23 lbs. |
| S93-8A4-50 | 1/2" Corrugated Stainless Steel Tubing | 50 | 6.2 |
| S93-8A4-125 | 1/2" Corrugated Stainless Steel Tubing | 125 | 22.2 |
| S93-8A4-250 | 1/2" Corrugated Stainless Steel Tubing | 250 | 38.0 |
| S93-8A4-500 | 1/2" Corrugated Stainless Steel Tubing | 500 | 69.0 |
| S93-8A4-1000 | 1/2" Corrugated Stainless Steel Tubing | 1,000 | 140.0 |
| S93-8A4-1500 | 1/2" Corrugated Stainless Steel Tubing | 1,500 | 200.0 |
3/4" Corrugated Stainless Steel Tubing
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| S93-11B4-25 | 3/4" Corrugated Stainless Steel Tubing | 25 Ft/Coil (5/Box) | 29 lbs. |
| S93-11B4-50 | 3/4" Corrugated Stainless Steel Tubing | 50 | 7.7 |
| S93-11B4-125 | 3/4" Corrugated Stainless Steel Tubing | 125 | 26.0 |
| S93-11B4-250 | 3/4" Corrugated Stainless Steel Tubing | 250 | 47.7 |
| S93-11B4-500 | 3/4" Corrugated Stainless Steel Tubing | 500 | 87.1 |
| S93-11B4-1000 | 3/4" Corrugated Stainless Steel Tubing | 1,000 | 170.4 |
1" Corrugated Stainless Steel Tubing
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| S93-16A4-50 | 1" Corrugated Stainless Steel Tubing | 50 | 18.1 |
| S93-16A4-75 | 1" Corrugated Stainless Steel Tubing | 75 | 23.8 |
| S93-16A4-150 | 1" Corrugated Stainless Steel Tubing | 150 | 42.3 |
| S93-16A4-300 | 1" Corrugated Stainless Steel Tubing | 300 | 78.4 |
| S93-16A4-500 | 1" Corrugated Stainless Steel Tubing | 500 | 130.8 |
1-1/4" Corrugated Stainless Steel Tubing
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| S93-20A4-50 | 1-1/4" Corrugated Stainless Steel Tubing | 50 | 22.1 |
| S93-20A4-75 | 1-1/4" Corrugated Stainless Steel Tubing | 75 | 30.0 |
| S93-20A4-150 | 1-1/4" Corrugated Stainless Steel Tubing | 150 | 60.0 |
| S93-20A4-300 | 1-1/4" Corrugated Stainless Steel Tubing | 300 | 103.8 |
1-1/2" Corrugated Stainless Steel Tubing
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| S93-24A4-50 | 1-1/2" Corrugated Stainless Steel Tubing | 50 | 29.4 |
| S93-24A4-75 | 1-1/2" Corrugated Stainless Steel Tubing | 75 | 35.5 |
| S93-24A4-150 | 1-1/2" Corrugated Stainless Steel Tubing | 150 | 76.6 |
| S93-24A4-300 | 1-1/2" Corrugated Stainless Steel Tubing | 300 | 125.7 |
2" Corrugated Stainless Steel Tubing
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| S93-32A4-50 | 2" Corrugated Stainless Steel Tubing | 50 | 39.5 |
| S93-32A4-75 | 2" Corrugated Stainless Steel Tubing | 75 | 51.6 |
| S93-32A4-150 | 2" Corrugated Stainless Steel Tubing | 150 | 108.0 |
| S93-32A4-300 | 2" Corrugated Stainless Steel Tubing | 300 | 194.0 |
