Protection & Bonding

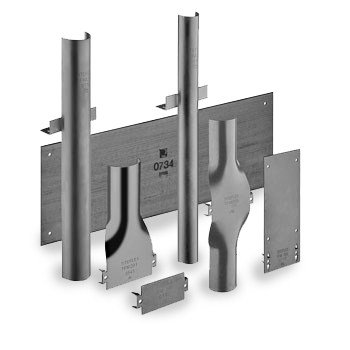

Striker Plates
- Striker plates used for protection where flexible gas piping passes through structural members and is restricted from moving to avoid nails, screws and other potential puncture threats.
- Steel conduit is used to provide additional protection where striker plates cannot be easily installed.
Bonding
- For attachment to the CSST gas piping system, a single bonding clamp must be attached to either a segment of steel pipe, a rigid pipe component or to the XR3 brass hex fitting. For attachment to a segment of steel pipe or a rigid pipe component any bonding clamp listed to UL467 may be used. For attachment to a XR3 hex fitting clamps manufactured by Erico (part number CWP1JSH for 3/8” & 1/2”, CWP2JSH for 3/4” thru 1 1/4” and CWP3JSH for 1 1/2” & 2”) must be used.
Striker Plates
- Striker Plates – 16 gauge AISI1050 Carbon Steel Hardened to Rc 45.
- Steel Conduit – Strip wound interlocking steel.
- Bonding clamps are listed to UL467 for use on XR3 hex fittings.
Bonding
- Solid Brass Body. Stainless Steel Screws.
Bonding
- Bonding clamps are rated for outdoor use.
Bonding
- Bonding clamps are listed to UL467 for use on XR3 hex fittings. For more information visit: http://www.erico.com/products.asp
Strike Plates (PDF 70kB)
Steel Conduit (PDF 182kB)
Protection & Bonding
| Part No. |
Description |
Pkg. Qty. |
Lb./Box |
| CWP1JSH |
Bonding Clamp for 3/8" and 1/2" CSST |
1 Ea. |
0.16 |
| CWP2JSH |
Bonding Clamp for 3/4", 1" and 1-1/4" CSST |
1 Ea. |
0.34 |
| CWP3JSH |
Bonding Clamp for 1-1/2" and 2" CSST |
1 ea. |
1.02 |
| Part No. |
Description |
Pkg. Qty. |
Lb./Box |

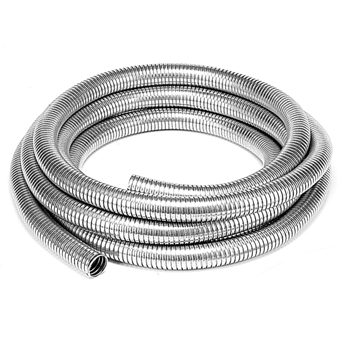

| FLOPPY12 |
3/4" Coil steel conduit - Fits 3/8" CSST |
50 Ft/Coil |
8.4 |
| FLOPPY16 |
1" Coil steel conduit - Fits 1/2" CSST |
50 Ft/Coil |
13.1 |
| FLOPPY20 |
1-1/4" Coil steel conduit - Fits 3/4" CSST |
25 Ft/Coil |
11.0 |
| FLOPPY24 |
1-1/2" Coil steel conduit - Fits 1" CSST |
25 Ft/Coil |
13.1 |
| FLOPPY28 |
1-3/4" Coil steel conduit - Fits 1-1/4" CSST |
25 Ft/Coil |
16.5 |
| FLOPPY36 |
2-1/4" Coil steel conduit - Fits 1-1/2" CSST |
25 Ft/Coil |
28.2 |
| FLOPPY48 |
3" Coil steel conduit - Fits 2" CSST |
25 Ft/Coil |
36.0 |
| Part No. |
Description |
Pkg. Qty. |
Lb./Box |

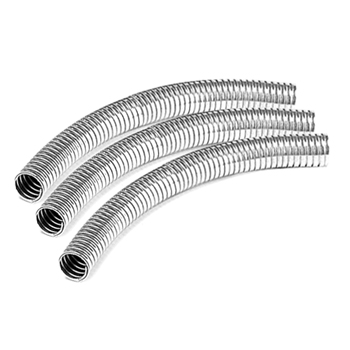

| LFLOPPY-12-50 |
3/4" - Cut to 1 foot length - Fits 3/8" CSST |
50/Box |
9.3 |
| LFLOPPY-16-50 |
1" - Cut to 1 foot length - Fits 1/2" CSST |
50/Box |
19.0 |
| LFLOPPY-20-25 |
1-1/4" - Cut to 1 foot length - Fits 3/4" CSST |
25/Box |
11.8 |
| LFLOPPY-24-25 |
1-1/2" - Cut to 1 foot length - Fits 1" CSST |
25/Box |
14.4 |
| LFLOPPY-28-25 |
1-3/4" - Cut to 1 foot length - Fits 1-1/4" CSST |
25/Box |
17.0 |
| LFLOPPY-36-25 |
2-1/4" - Cut to 1 foot length - Fits 1-1/2" CSST |
25/Box |
28.8 |
| LFLOPPY-48-25 |
3" - Cut to 1 foot length - Fits 2" CSST |
25/Box |
37.0 |
| Part No. |
Description |
Pkg. Qty. |
Lb./Box |

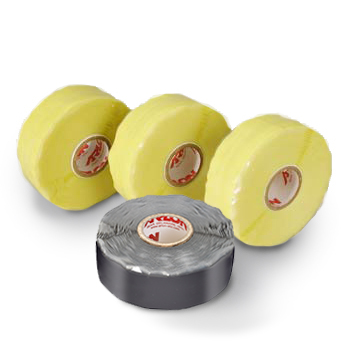

| SIL-TAPE |
Self Bonding Silicone Yellow Tape - 1" x .015" x 12 yd / roll |
1 Ea. |
0.3 |
| SIL-TAPE-B |
Self Bonding Silicone Black Tape - 1" x .015" x 12 yd / roll |
1 Ea. |
0.3 |
| Part No. |
Description |
Pkg. Qty. |
Lb./Box |
| TFM201-50 |
Half Striker Plate - 3" x 7" |
50/box |
15.5 |
| TFM203-50 |
Three-Quarter Striker Plate - 3" x 8" |
50/box |
20.0 |
| TFM204-100 |
Quarter Striker Plate - 3" x 2" |
100/Box |
8.0 |
| TFM205-25 |
Full Striker Plate - 3" x 12" |
25/box |
13.8 |
| TFM210-10 |
6" x 17" Striker Plate |
10/box |
19.0 |
| TFM211-25 |
Full (Drop-In) Striker Plate - 1/2" & 3/4" CSST |
25/Box |
11.0 |
| TFM212-25 |
Full (Drop-In) Striker Plate - 1" & 1 1/4" CSST |
25/Box |
16.0 |
