Underground - Iron Pipe Size

Application

Unlike above-grade gas piping installations that require metallic piping, underground systems need to perform in harsh and corrosive environments. Metallic pipe installed underground requires additional and costly materials to protect the pipe. Polyethylene gas piping systems are specifically engineered and certified for the underground environment. To provide a true underground gas piping solution, Gastite® has partnered with Continental Industries, Inc. to bring you Con-Stab I.D. Seal®‚ fittings, anode-less risers and polyethylene tubing (PE). These components assemble in minutes to form a complete underground gas piping system, which offers the flexibility and simple fitting assembly you have come to expect from Gastite®.

Features & Benefits

  • Cost effective joining method
  • Simple assembly.
  • No additional assembly equipment required for installation – just chamfer and push
  • Expanded product line with various configurations and material options
  • Uni-body design eliminating all external parts
  • Designed, tested and certified for direct burial
  • Eliminates corrosive threats associated with metallic piping
  • Lowest installed cost compared to other underground gas piping materials
  • Continuous lengths of flexible piping



Code/Specifications

• NFPA-58 and NFPA-54
• ASTM D-2513, Category 1
• ASME D-B31.8-1995
• CAN/CSA-B137.4
• Listed with CSA
• Listed with IAPMO/UPC
• US DOT Part 192.283
• ISO 4437



Underground - Iron Pipe Size

Iron Pipe Size (IPS) Tubing

Iron Pipe Size (IPS) Tubing
Part No. Description Pkg. Qty. Lb./Box
PE-12-125    3/4" IPS (SDR-11) - PE Tubing (24" ID x 35" OD) 125 ft/coil 15.0
PE-12-250    3/4" IPS (SDR-11) - PE Tubing (30" ID x 45" OD) 250 ft/coil 31.0
PE-12-500    3/4" IPS (SDR-11) - PE Tubing (30" ID x 42" OD) 500 ft/coil 60.0
PE-16-125-IPS    1" IPS (SDR-11) - PE Tubing (25" ID x 34" OD) 125 ft/coil 23.8
PE-16-250-IPS    1" IPS (SDR-11) - PE Tubing (30" ID x 45" OD) 250 ft/coil 47.5
PE-16-500-IPS    1" IPS (SDR-11) - PE Tubing (31" ID x 45" OD) 500 ft/coil 95.0
PE-20-125*    1-1/4" IPS (SDR-10) - PE Tubing (48" ID x 58" OD) 125 ft/coil 41.3
PE-20-250*    1-1/4" IPS (SDR-10) - PE Tubing (48" ID x 64" OD) 250 ft/coil 82.5
PE-20-500*    1-1/4" IPS (SDR-10) - PE Tubing (48" ID x 72" OD) 500 ft/coil 165.0
PE-24-125*    1-1/2" IPS (SDR-11) - PE Tubing (45" ID x 65" OD) 125 ft/coil 51.5
PE-24-250*    1-1/2" IPS (SDR-11) - PE Tubing (45" ID x 65" OD) 250 ft/coil 103.0
PE-32-250*    2" IPS (SDR-11) - PE Tubing (51" ID x 78" OD) 250 ft/coil 157.5

Iron Pipe Size (IPS) Couplings

Iron Pipe Size (IPS) Couplings
Part No. Description Pkg. Qty. Lb./Box
PE90CPL-12    3/4" IPS 90 Degree Coupling 1 Ea. 1.0
PECPL-12    3/4" IPS Coupling 1 Ea. 0.5
PECPL-12-16-IPS    3/4" IPS x 1" IPS Reducer Coupling 1 Ea. 0.7
PECPL-12-20    3/4" IPS x 1-1/4" IPS Reducing Coupling 1 Ea. 2.0
PECPL-16-IPS    1" IPS Coupling 1 Ea. 0.8
PECPL-16-IPS-32    1" IPS x 2" IPS Reducer Coupling 1 Ea. 3.1
PECPL-20    1-1/4" IPS Coupling 1 Ea. 2.0
PECPL-20-32    1-1/4" IPS x 2" IPS Reducer Coupling 1 Ea. 3.5
PECPL-24    1-1/2" IPS Coupling 1 Ea. 1.7
PECPL-32    2" IPS Coupling 1 Ea. 4.0
PERCPL-12    3/4" IPS Repair Coupling 1 Ea. 0.8

Iron Pipe Size (IPS) Tee Fitting

Iron Pipe Size (IPS) Tee Fitting
Part No. Description Pkg. Qty. Lb./Box
PERT-16-16-12    1" IPS x 1" IPS x 3/4" IPS Reducer Tee 1 Ea. 2.5
PERT-20-20-12    1-1/4" IPS x 1-1/4" IPS x 3/4" IPS Reducer Tee 1 Ea. 3.3
PERT-20-20-16-IPS    1-1/4" IPS x 1-1/4" IPS x 1" IPS Reducer Tee 1 Ea. 4.0
PERT-24-24-20-IPS    1-1/2" IPS x 1-1/2" IPS x 1-1/4" IPS Reducer Tee 1 Ea. 4.3
PERT-32-32-12    2" IPS x 2" IPS x 3/4" IPS Reducer Tee 1 Ea. 5.0
PERT-32-32-16-IPS    2" IPS x 2" IPS x 1" IPS Reducer Tee 1 Ea. 5.0
PERT-32-32-20    2" IPS x 2" IPS x 1-1/4" IPS Reducer Tee 1 Ea. 5.0
PET-12    3/4" IPS Tee Fitting 1 Ea. 1.2
PET-16-IPS    1" IPS Tee Fitting 1 Ea. 2.4
PET-20    1-1/4" IPS Tee Fitting 1 Ea. 4.5
PET-24    1-1/2" IPS Tee Fitting 1 Ea. 4.2
PET-32    2" IPS-Tee Fitting 1 Ea. 9.0
TAP-20-12    1-1/4" IPS x 3/4" IPS Mechanical Tapping Tee 1 Ea. 2.5
TAP-20-16-IPS    1-1/4" IPS x 1" IPS Mechanical Tapping Tee 1 Ea. 2.5
TAP-32-16-IPS    2" IPS x 1" IPS Mechanical Tapping Tee 1 Ea. 2.1

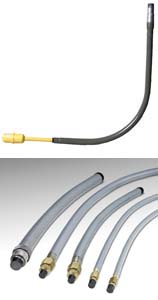

Iron Pipe Size (IPS) Riser

Iron Pipe Size (IPS) Riser
Part No. Description Pkg. Qty. Lb./Box
F-RISER-12-36    Flex Riser - 3/4" IPS x 36" x 3/4" NPT 1 Ea. 4.0
F-RISER-12-72    Flex Riser - 3/4" IPS x 72" x 3/4" NPT 1 Ea. 6.1
RISER-12-30    3/4" IPS x 30" Vertical x 3/4" NPT - Riser w/Con-Stab Cplg. 1 Ea. 7.0
RISER-16-30-IPS    1" IPS x 30" Vertical x 1" NPT - Riser w/Con-Stab Cplg. 1 Ea. 8.0
RISER-20-30    1-1/4" IPS x 30" Vertical x 1-1/4" NPT - Riser w/Con-Stab Cplg. 1 Ea. 15.0
RISER-24-36    1-1/2" IPS x 36" Vertical x 1-1/2" NPT - Riser w/Con-Stab Cplg. 1 Ea. 19.0
RISER-32-36    2" IPS x 36" Vertical x 2" NPT - Riser w/Con-Stab Cplg. 1 Ea. 17.0

Iron Pipe Size (IPS) Fitting

Iron Pipe Size (IPS) Fitting
Part No. Description Pkg. Qty. Lb./Box
TRANS-12    3/4" IPS x 3/4" NPT Transition Fitting 1 Ea. 1.1
TRANS-16-IPS    1" IPS x 1" NPT Transition Fitting 1 Ea. 1.8
TRANS-20    1-1/4" IPS x 1-1/4" NPT Transition Fitting 1 Ea. 2.5
TRANS-24    1-1/2" IPS x 1-1/2" NPT Transition Fitting 1 Ea. 3.9
TRANS-32    2" IPS x 2" NPT Transition Fitting 1 Ea. 3.3
