Mounting Hardware

Application

The Modular Stub System creates a fixed point “stub-out” on a wall or floor surface for meter and appliance attachment. Reducing the number of joints in the system where “stub-outs” are typically fabricated from rigid pipe nipples, elbows and couplings, the Modular Stub System is aesthetically pleasing and a time saver.

  • Termination Bracket provides mounting surface for termination fitting assembly.
  • Manifold Bracket provides mounting platform for manifolds, supplied with adhesive port labeling.
  • Gas Load Center creates a recessed cabinet for a more polished look to manifold assembly.
  • XR3OUTLETBOX creates a secure recessed termination point for connection to moveable appliances.

Materials / Specification

  • Termination Bracket – 16 gauge galvanized sheet metal.
  • MBRACE-1 Mounting Kit made of 16 gauge galvanized sheet metal.
  • Fits 3-PORTMAN, 3-PORTMAN-1, 4-PORTMAN, 5-PORTMAN and 111596-08.
  • MBRACE-3 Mounting Kit made of 14 gauge galvanized sheet metal.
  • Fits 5-PORTMAN-1, 5-PORTMAN-2, 5-PORTMAN-3 and 4-PORTMAN-2.
  • 4-PORTMAN-3 requires installer supplied mounting brackets.
  • Gas Load Center – 20 gauge steel with a white, polyester powder coat finish.
  • Metal Tubing Straps – 22, 20 or 18 gauge sheet metal, depending on size.
  • XR3OUTLETBOX – Ball Valve ANSI Z21.15 or ANSI/ASME B16.33.

Engineering Specs

Pipe Supports (PDF 34kB)

XR2 Outlet Box (PDF 40kB)

XR2 Fire Rated Outlet Box (PDF 46kB)

Gastite Load Center (PDF 209kB)

Mounting Hardware

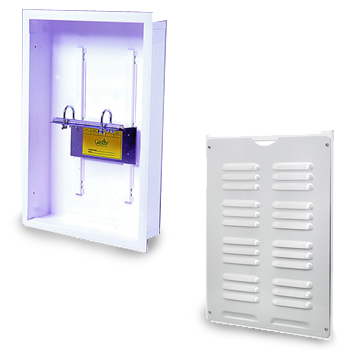

Gas Load Center Kit

Gas Load Center Kit
Part No. Description Pkg. Qty. Lb./Box
GLC1    Gas Load Center Kit - 14-1/2" x 24" x 3-1/2" 1 Ea. 11.8
GLC1-PANEL    Gas Load Center Panel Cover - Vented 1 Ea. 4.0

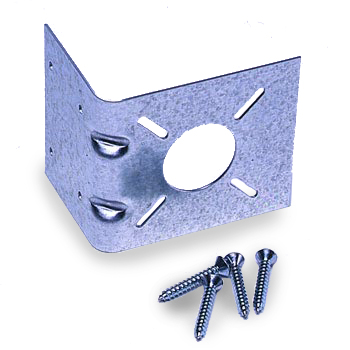

Termination Brackets

Termination Brackets
Part No. Description Pkg. Qty. Lb./Box
LBRACE-1-20    Term. Fitting Mounting Kit - Fits 3/8" - 1" CSST 20/Box 9.0

Manifold Bracket

Manifold Bracket
Part No. Description Pkg. Qty. Lb./Box
MBRACE-1-10    Manifold Mounting Kit - Fits 3-PORTMAN 4-PORTMAN 5-PORTMAN 111596-08. 10/Box 16.0
MBRACE-3-10    Manifold Mounting Kit - Fits 5-PORTMAN-1 5-PORTMAN-2 5-PORTMAN-3 4-PORTMAN-2 10/Box 16.0

Metal Tubing Straps

Metal Tubing Straps
Part No. Description Pkg. Qty. Lb./Box
MSTRAPS-6-250    Metal Tubing Strap - Fits 3/8" CSST 250/Box 4.1
MSTRAPS-8-250    Metal Tubing Strap - Fits 1/2" CSST 250/Box 4.6
MSTRAPS-11-150    Metal Tubing Strap - Fits 3/4" CSST 150/Box 3.1
MSTRAPS-16-100    Metal Tubing Strap - Fits 1" CSST 100/Box 3.7
MSTRAPS-20-50    Metal Tubing Strap - Fits 1-1/4" CSST 50/Box 3.0
MSTRAPS-24-50    Metal Tubing Strap - Fits 1-1/2" CSST 50/Box 4.5
MSTRAPS-32-25    Metal Tubing Strap - Fits 2" CSST 25/Box 2.5

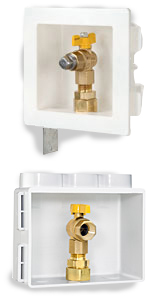

Recessed Gas Outlet Box Kit

Recessed Gas Outlet Box Kit
Part No. Description Pkg. Qty. Lb./Box
XROUTLETBOX-FR11    Recessed firestop gas outlet box kit with 3/4" 1 kit 4.1
XROUTLETBOX-FR8    Recessed firestop gas outlet box kit with 1/2" 1 kit 3.8
XROUTLETBOX-8    Recessed gas outlet box kit with 1/2" 1 kit 1.5
XROUTLETBOX-11    Recessed gas outlet box kit w/ 3/4" 1 kit 2.2
