Modular Stub System
Application
- All Stubs create a fixed point “stub-out” on a wall or floor surface for meter and appliance attachment.
- Angle Stub-Out mounting plate provided at a 72-1/2° angle to facilitate mounting to angled side of most fireplace inserts.
Materials / Specification
- Schedule 40 steel pipe complying with material standard ASTM A-53.
- Exterior plating – Black oxide coating after all threading, forming and welding.
Features & Benefits
- Reduces the number of joints in the system where contractors typically fabricate “stub-outs” from rigid pipe nipples, elbows and couplings.
- Provides a fixed-point termination for installations where the appliances are not yet installed.
- Creates a more polished look to the overall installation.
Modular Stub System

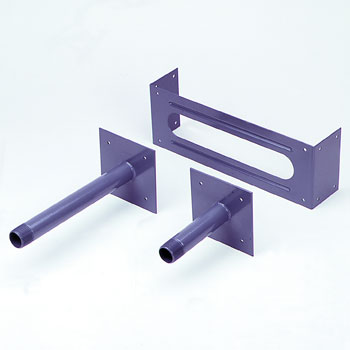

Straight Stubs & Stub Brackets
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| 1-1/4X6STUB-10 | 1-1/4"M x 6"L Straight Stub | 10/box | 18.0 |
| 1-1/4X12STUB-10 | 1-1/4"M x 12"L Straight Stub | 10/box | 27.0 |
| 1-1/2X6STUB-10 | 1-1/2"M x 6"L Straight Stub | 10/box | 21.0 |
| 1-1/2X12STUB-10 | 1-1/2"M x 12"L Straight Stub | 10/box | 32.0 |
| 1/2X12STUB-10 | 1/2"M x 12"L Straight Stub | 10/box | 16.9 |
| 1/2X6STUB-10 | 1/2"M x 6"L Straight Stub | 10/box | 12.2 |
| 1X12STUB-10 | 1"M x 12"L Straight Stub | 10/box | 24.1 |
| 1X6STUB-10 | 1"M x 6"L Straight Stub | 10/box | 15.3 |
| 3/4X12STUB-10 | 3/4"M x 12"L Straight Stub | 10/box | 22.9 |
| 3/4X6STUB-10 | 3/4"M x 6"L Straight Stub | 10/box | 14.5 |
| ANGLE-STUB-01-10 | 1/2"M x 5-1/2"L x 72.5° Angle Stub | 10/box | 11.0 |
| DBLSTUB-1-10 | Double Appliance Stub-Out 3/4" Inlet x 1/2" & 3/4" Outlet | 10/Box | 26.0 |
| DECKSTUB-1/2x3-10 | 1/2" x 3" Bracket Stub-Out. | 10/Box | 8.7 |
| STUB-BRACE | Stub Bracket (optional) - Fits All | 1 Ea. | 1.8 |

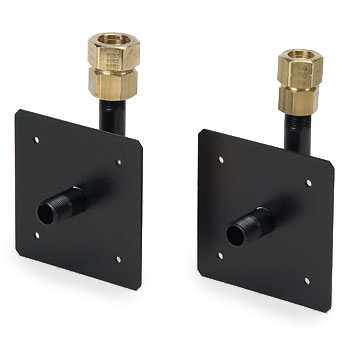

Appliance Stub-Outs
| Part No. | Description | Pkg. Qty. | Lb./Box |
|---|---|---|---|
| XR-L-APSTUB-8-10 | 1/2"M x 1/2"M x 2-1/4" Stub length with 1/2" female fitting | 10/box | 15.5 |
| XR-L-APSTUB-11-10 | 1/2"M x 1/2"M x 2-1/4" Stub length with 3/4" female fitting | 10/box | 19.7 |
| XR-L-APSTUB-11-11-10 | 3/4"M x 3/4"M x 2-1/4" Stub length with 3/4" female fitting | 10/box | 22.0 |
| XR-APSTUB-8-10 | 1/2"M x 1/2"M x 1-1/2" Stub length with 1/2" female fitting | 10/box | 14.9 |
| XR-APSTUB-11-10 | 1/2"M x 1/2"M x 1-1/2" Stub length with 3/4" female fitting | 10/box | 19.1 |
| XR-APSTUB-11-11-10 | 3/4"M x 3/4"M x 1-1/2" Stub length with 3/4" female fitting | 10/box | 21.4 |
